The Belgie is affectionately named after Melbourne's infamous "Belgie Ride,” a short, sharp, mixed terrain shop ride that often resembles a CX race rather than a road ride.
In 2015, the Belgie was introduced to the world when Jesse Carlsson raced across the US, winning the 6,800 km Trans Am Bike Race by over 500 km.
Since then, the Belgie has won crits, raced nationals, and is the bike chosen by legendary Belgian Kristof Allegaert, arguably one of the world's fastest endurance cyclists.

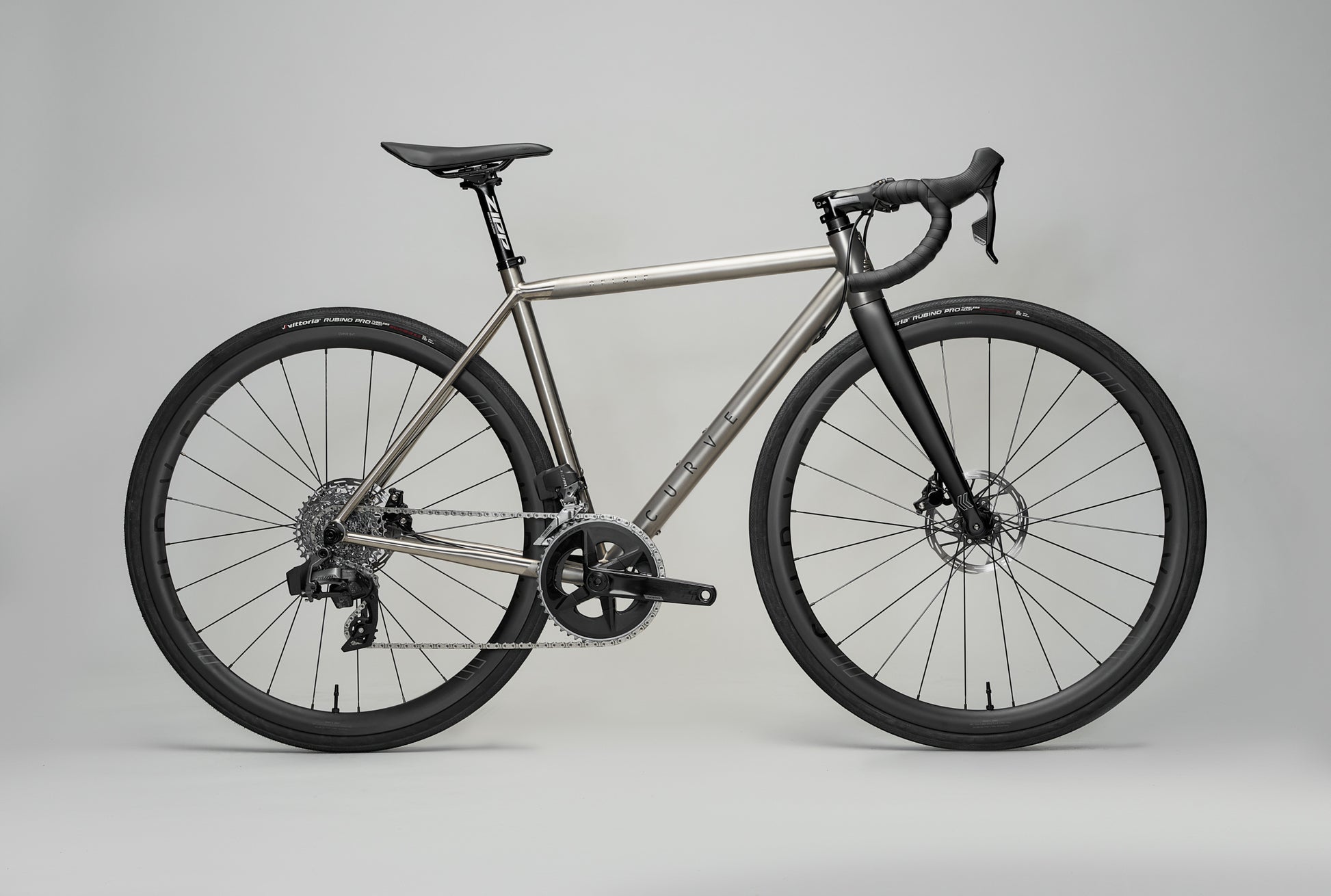

The Belgie DISC is a combined version of the original Belgie and our Belgie Air based on feedback and real-life testing.
-
Compared to it's Predecessor, What's Different?

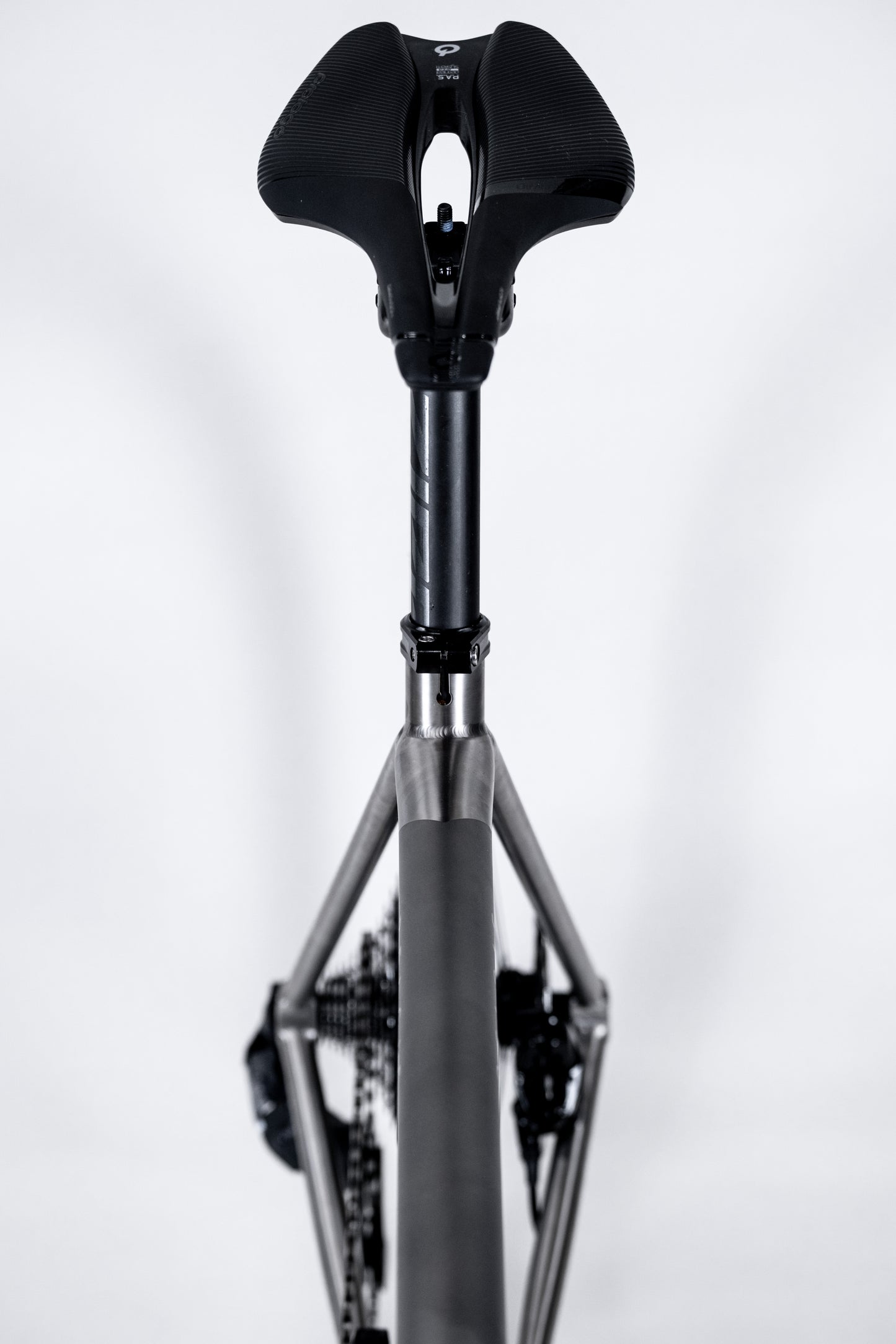

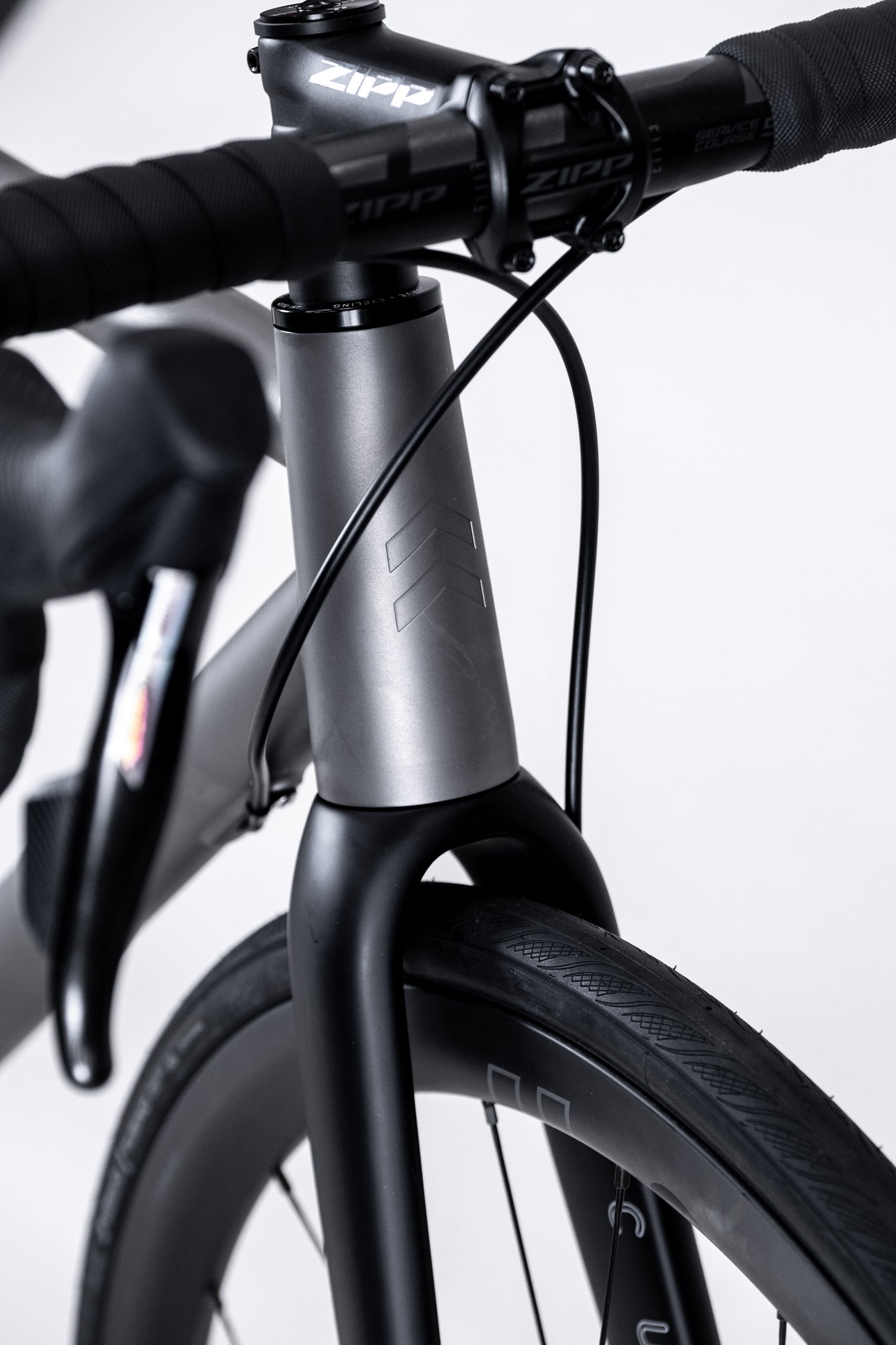

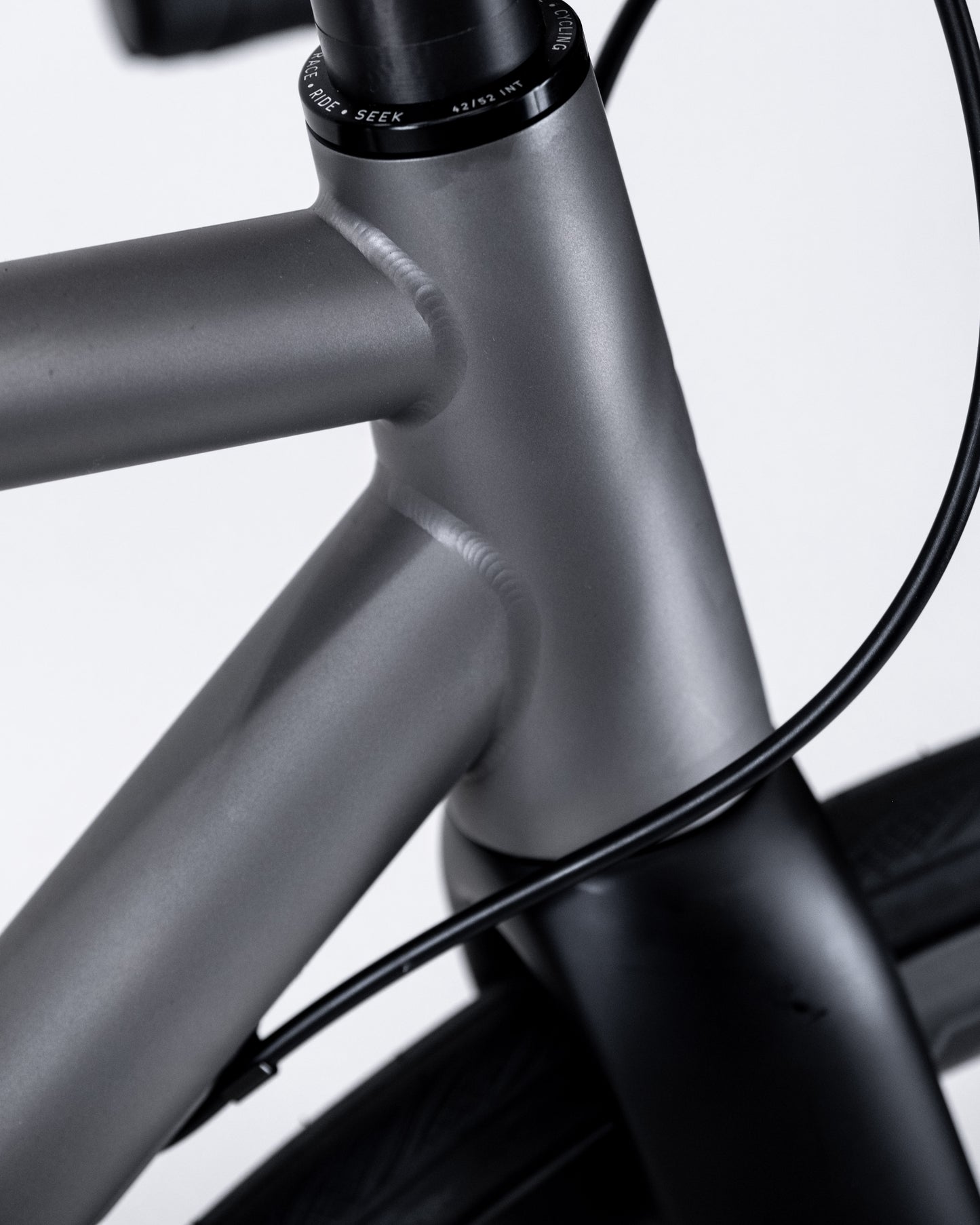

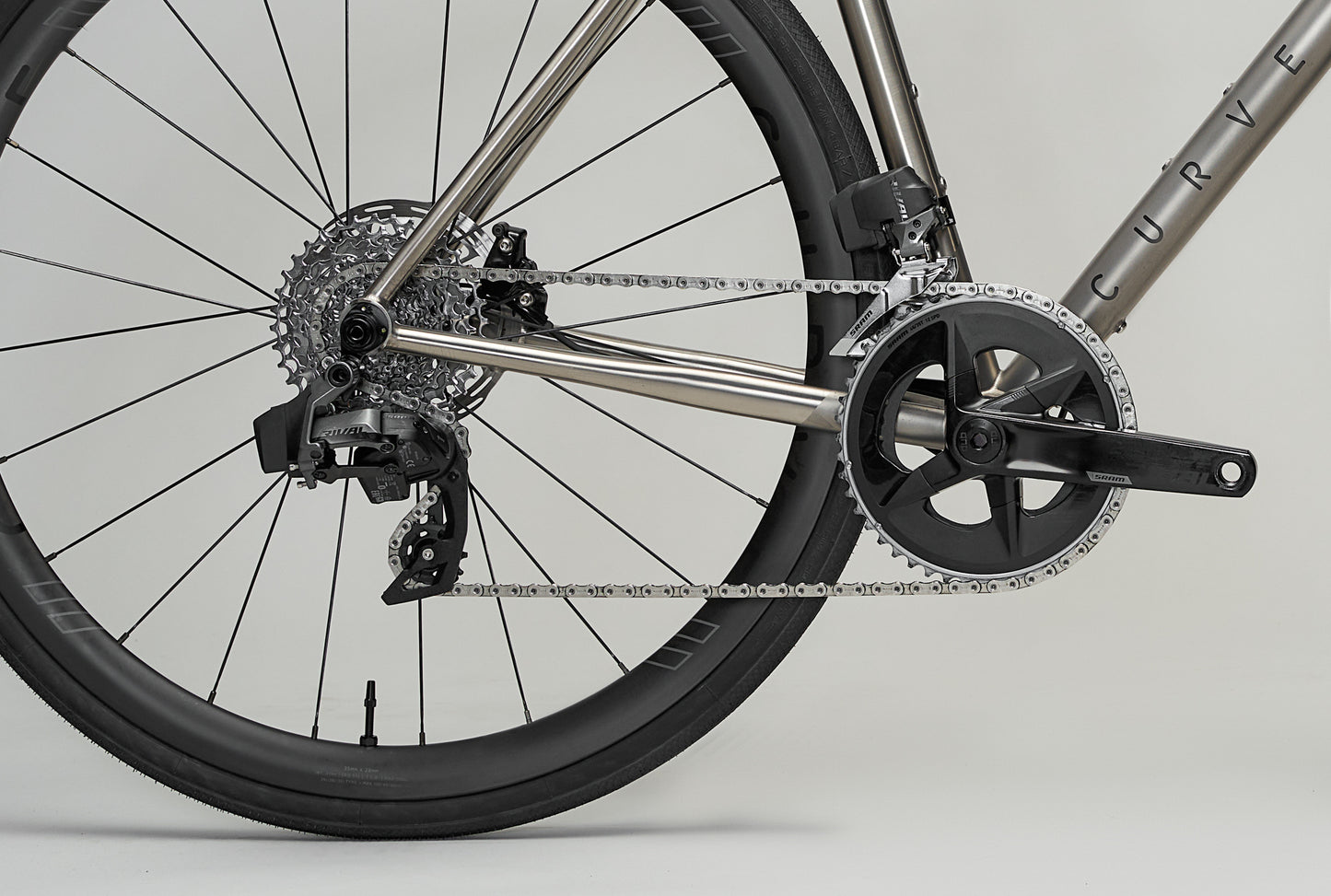

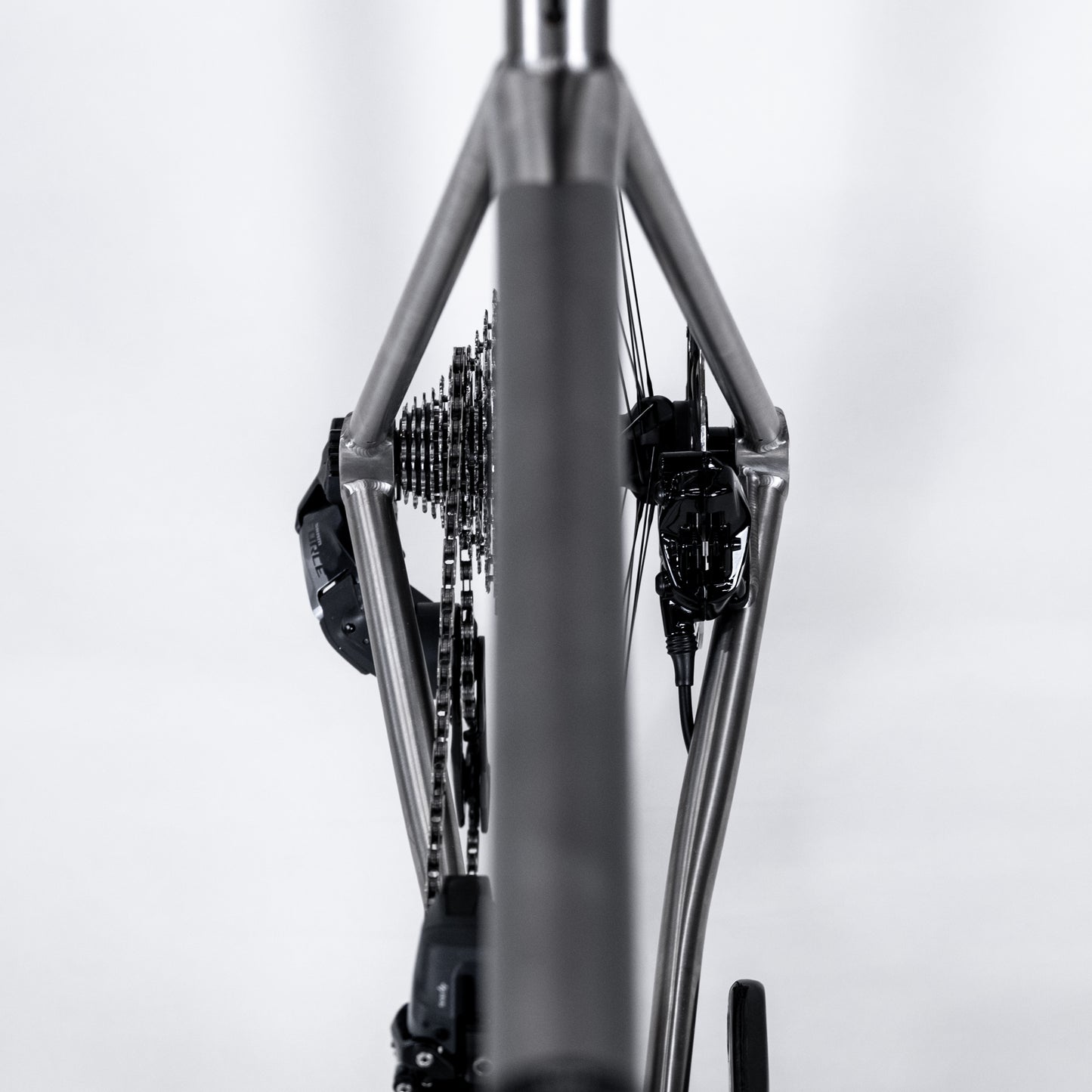

We've straightened out the seat stays and removed the old ‘brake bridge’ for a new sleeker and lighter rear triangle. This means better tyre clearance, up to 33 mm. Upfront, the tapered head tube is taken straight from our Belgie AIR and utilises an integrated headset for some gram shedding and a sleeker finish.
-
A Size for Everyone
Are you an ‘extra medium’ or in-between size? Check out our sizing and geometry chart below and see that we've introduced more sizes to ensure your Belgie is the perfect fit.
-
Mechanical versus Electric
Thanks to some improvements in engineering, the Belgie frame is now compatible with both electronic and mechanical gear systems. So you can now have your pick of eTap, Di2, or standard mechanical options.
-
Travel in Comfort
At the core of each frame is a 3AL - 2.5V Grade 9 Aerospace grade titanium tube-set. This grade is optimal for bicycle frames and chosen for its stiffness, compliance, and durability balance. Titanium absorbs road noise without compromising on performance. There’s no buzzy feedback; it’s smooth as silk and very compliant so that you can spend more time on the bike.
-
Want to Carry More?
With a wide range of frame and fork mounted rack systems on the market, and with more appearing every week, it is important to understand which rack systems are compatible with your Curve frame and fork, and how to mount them correctly in order to ensure safe riding, avoid damage and voiding your warranty. Before mounting a rack, we strongly recommend you get in touch with us to confirm compatibility and the correct mounting procedure. This will minimise the risk of injury, product damage and voiding your warranty. Your local Curve dealer, or the team at Curve HQ, can also help you select a rack system and mount it to your bike for you.
-
Framebags
We have bagmaker drawings available for all frame sizes.
To make sure current, prospective or custom bagging fits your frame size please see our Bagmaker Drawing page.

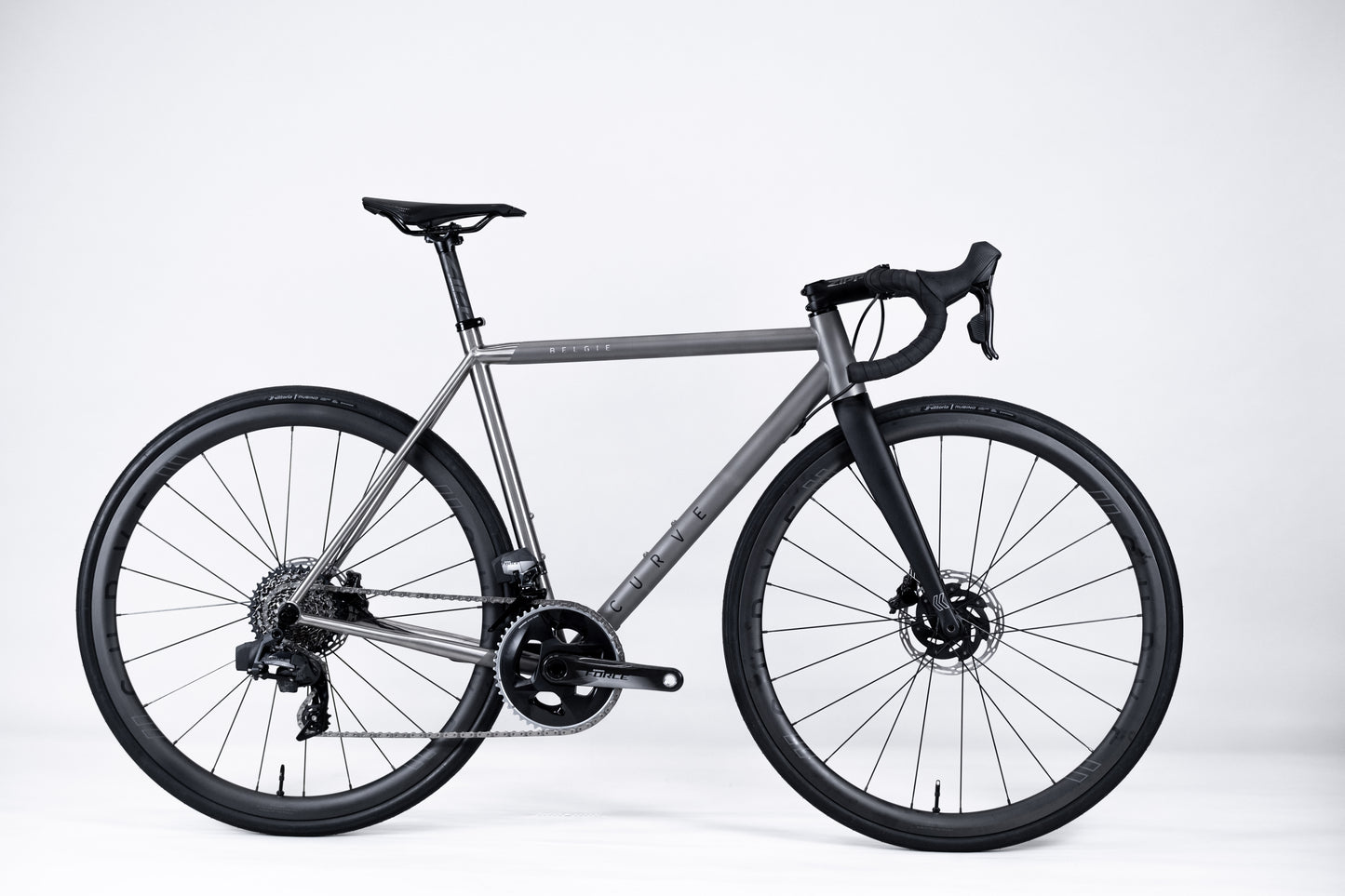

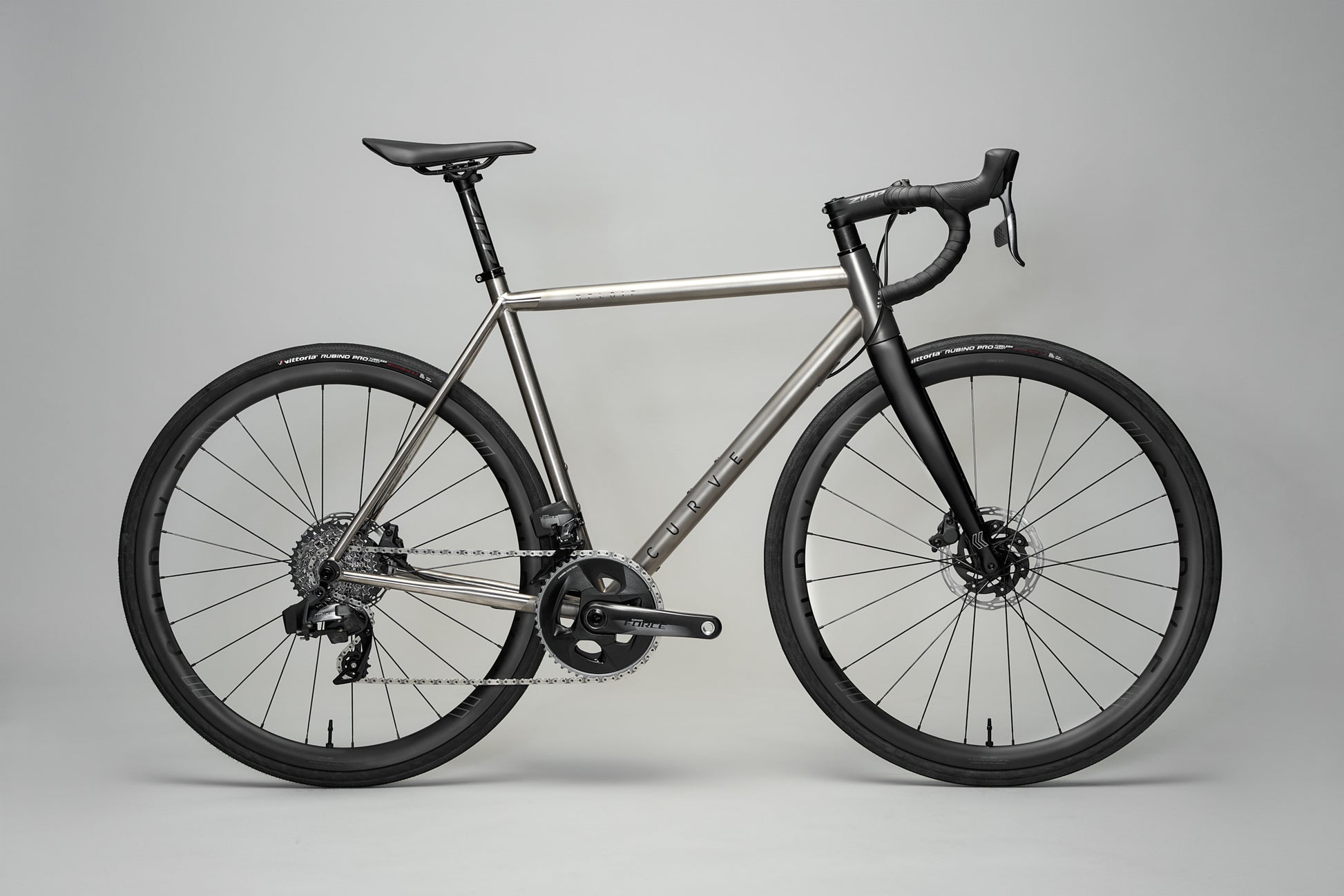

Belgie DISC Specifications
Frameset

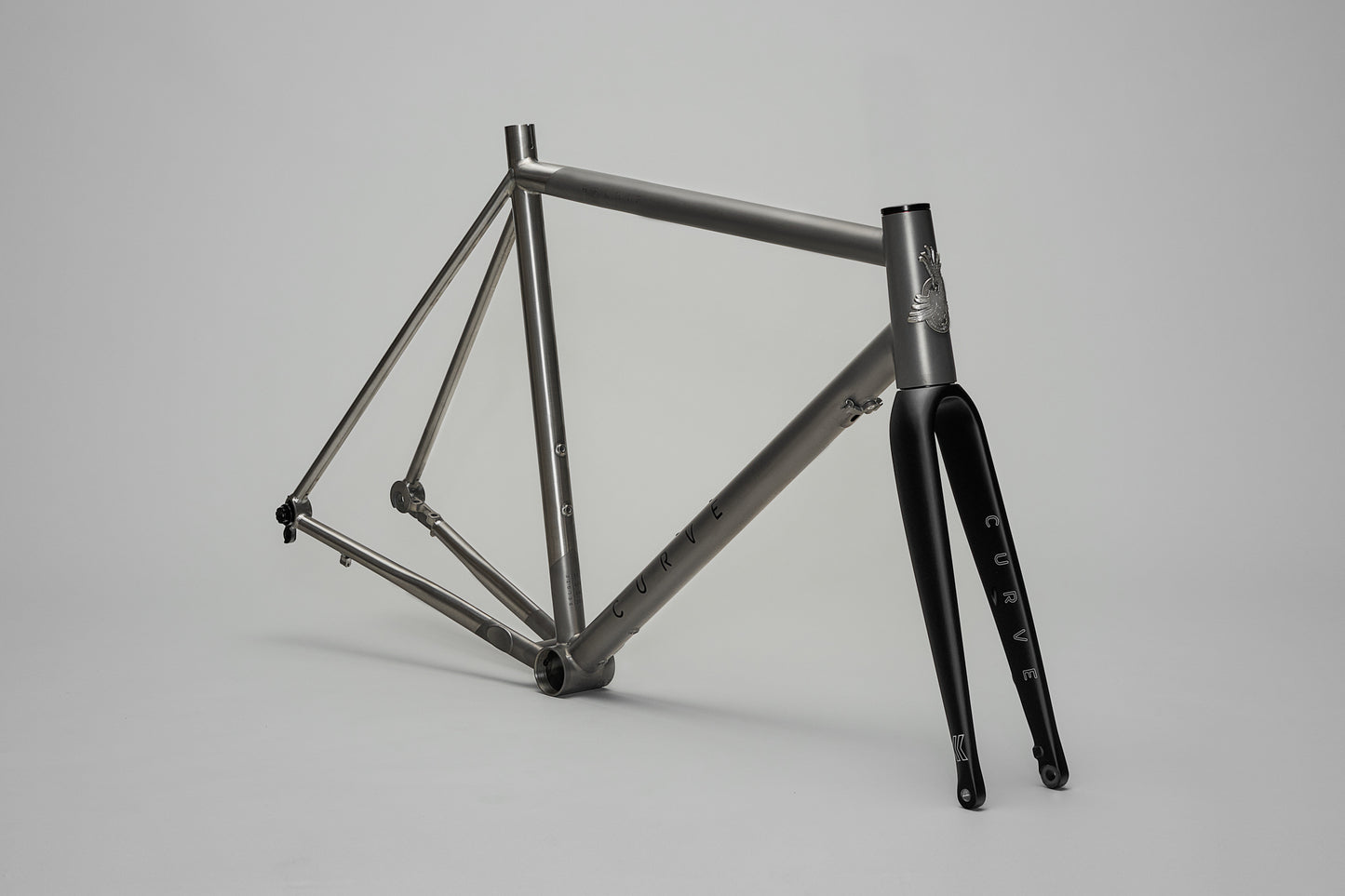

Frame - Titanium Curve Belgie DISC (1630 g for Size 56 cm)

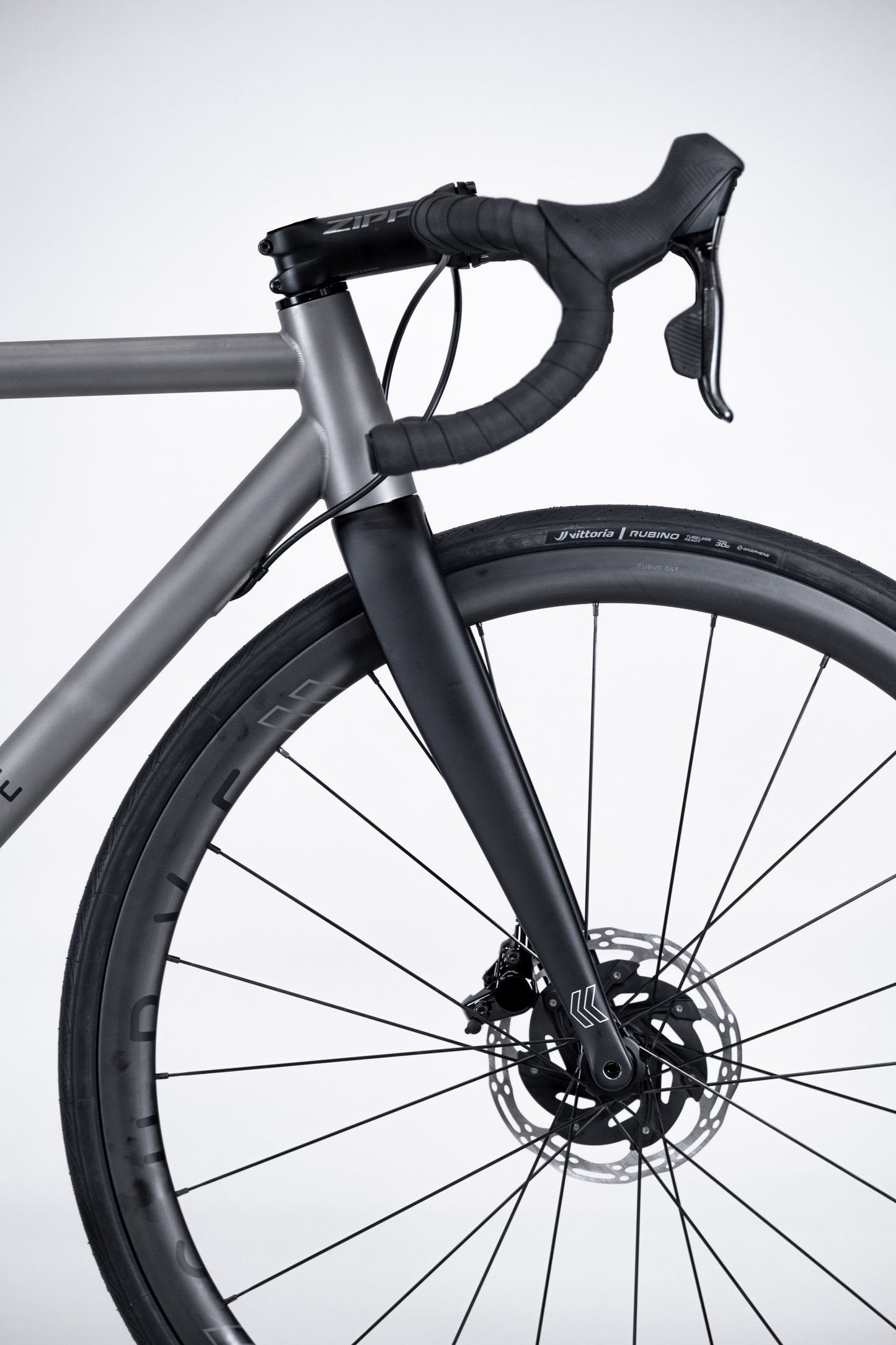

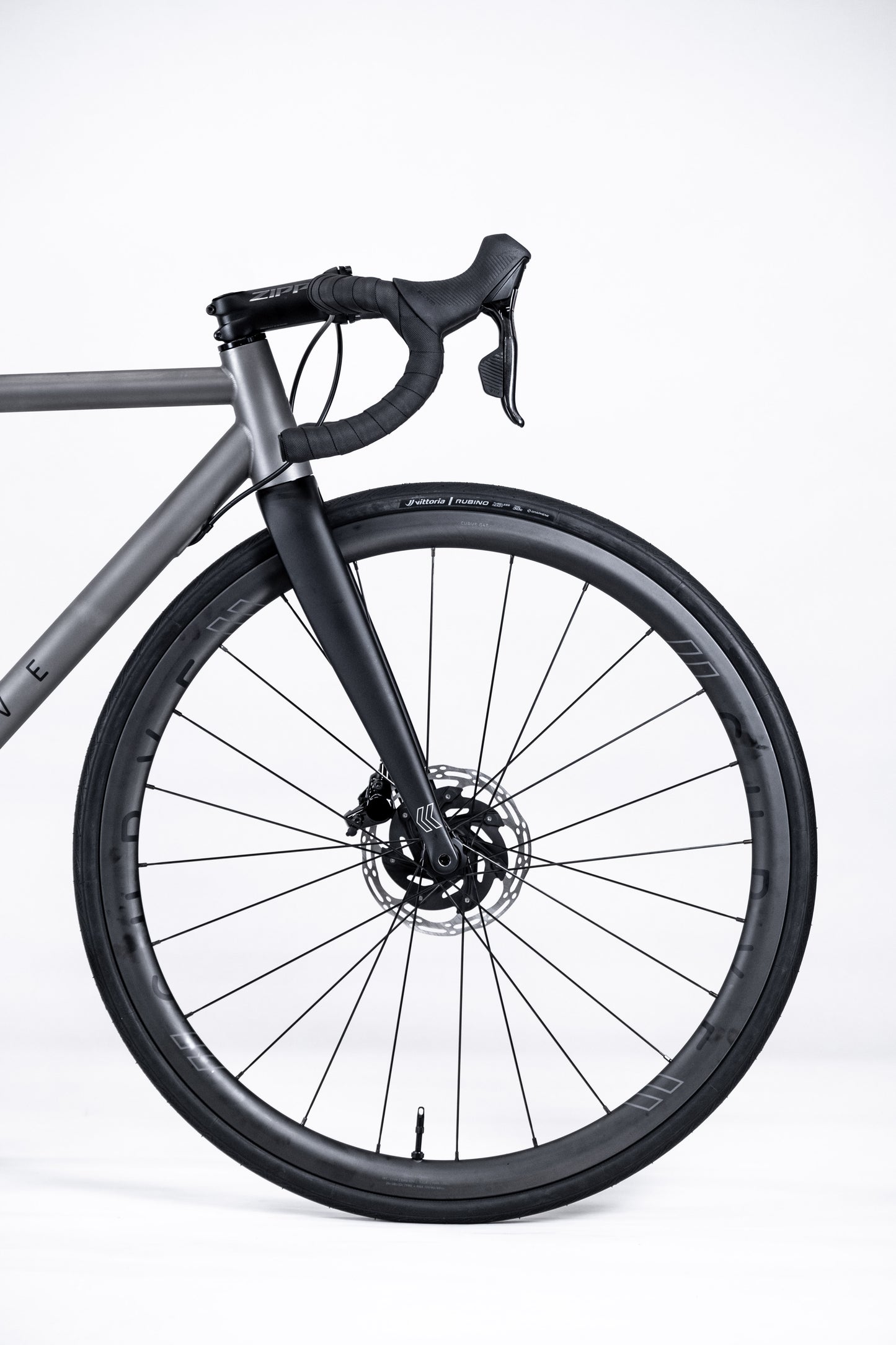

Fork - Curve Race 370 - Full Carbon, Black (Max Clearance 33 mm)
Headset - Curve Integrated 42/52 mm semi-internal
Seat Clamp - Curve Alloy 31.8 mm
Other - Curve Cocky Headbadge, 12 mm Front & Rear Axles, spare rear derailleur hanger
Groupset Options
SRAM Red AXS eTap 12 sp

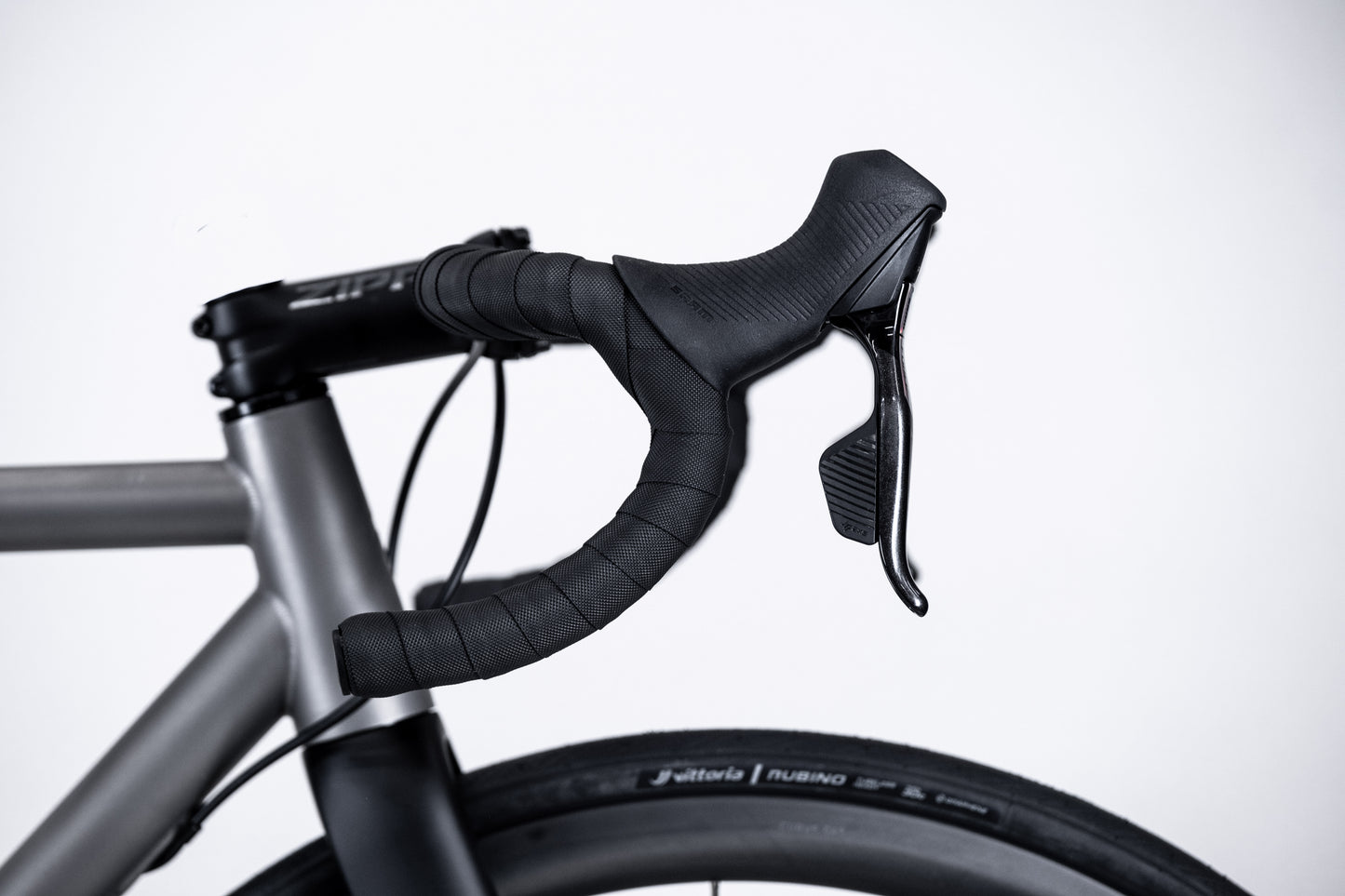

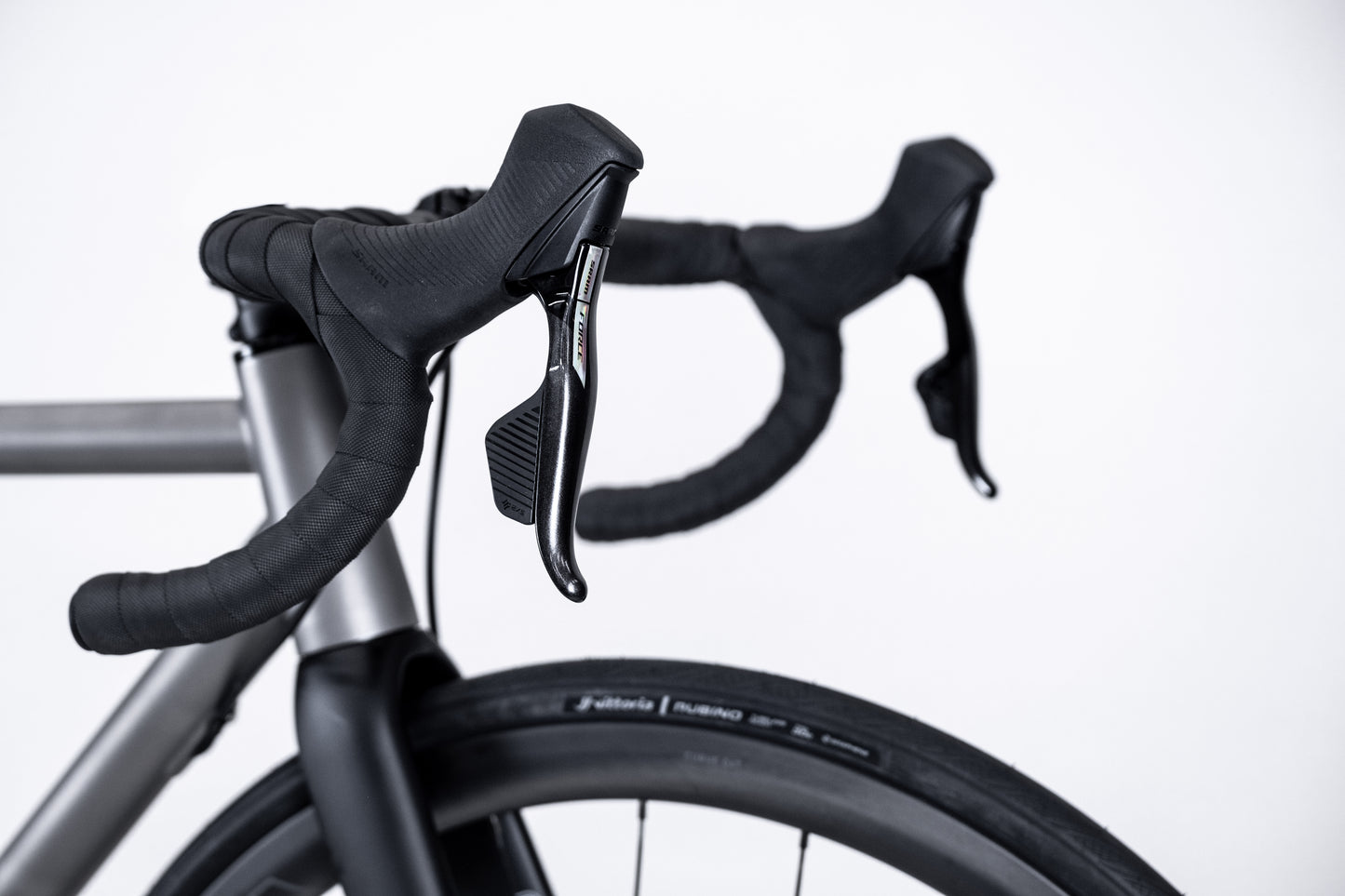

Shifter/Levers - Red AXS 2x12 sp - LHR / RHF
Brakes - Red AXS Flat Mount Disc // CLX R CL Rotors 160 mm
Crank - Red Power Meter DUB - 48/35t | 48-50 cm: 165 mm | 52-55 cm: 170 mm | 56-61 cm: 175 mm
Bottom Bracket - Curve T47 DUB Ext.
Derailleur F & R - Red AXS 2x12 sp (RD Max 33t)
Cassette - XG 1290 10-33t 12 sp
Chain - Red 12 sp
-

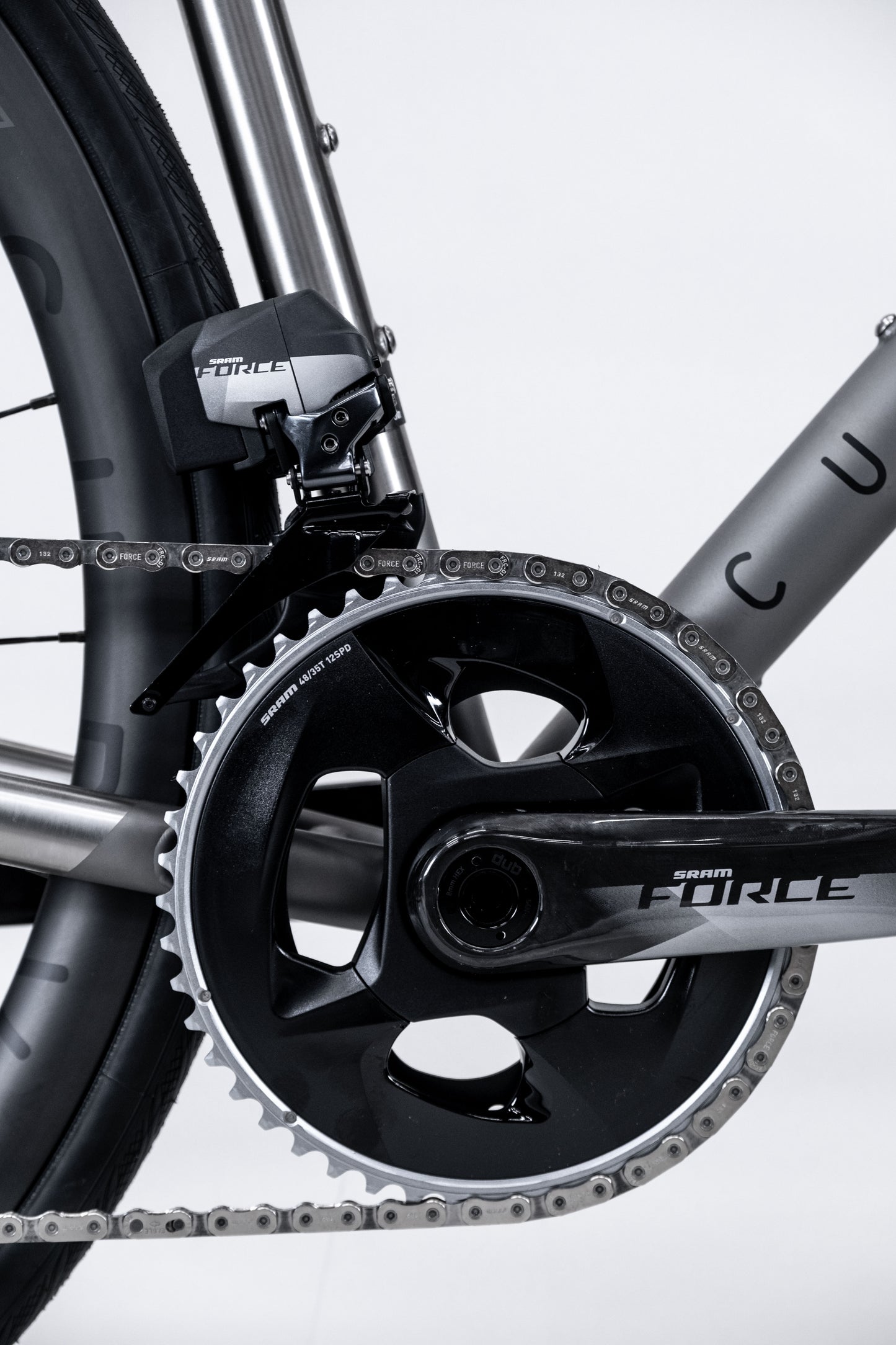

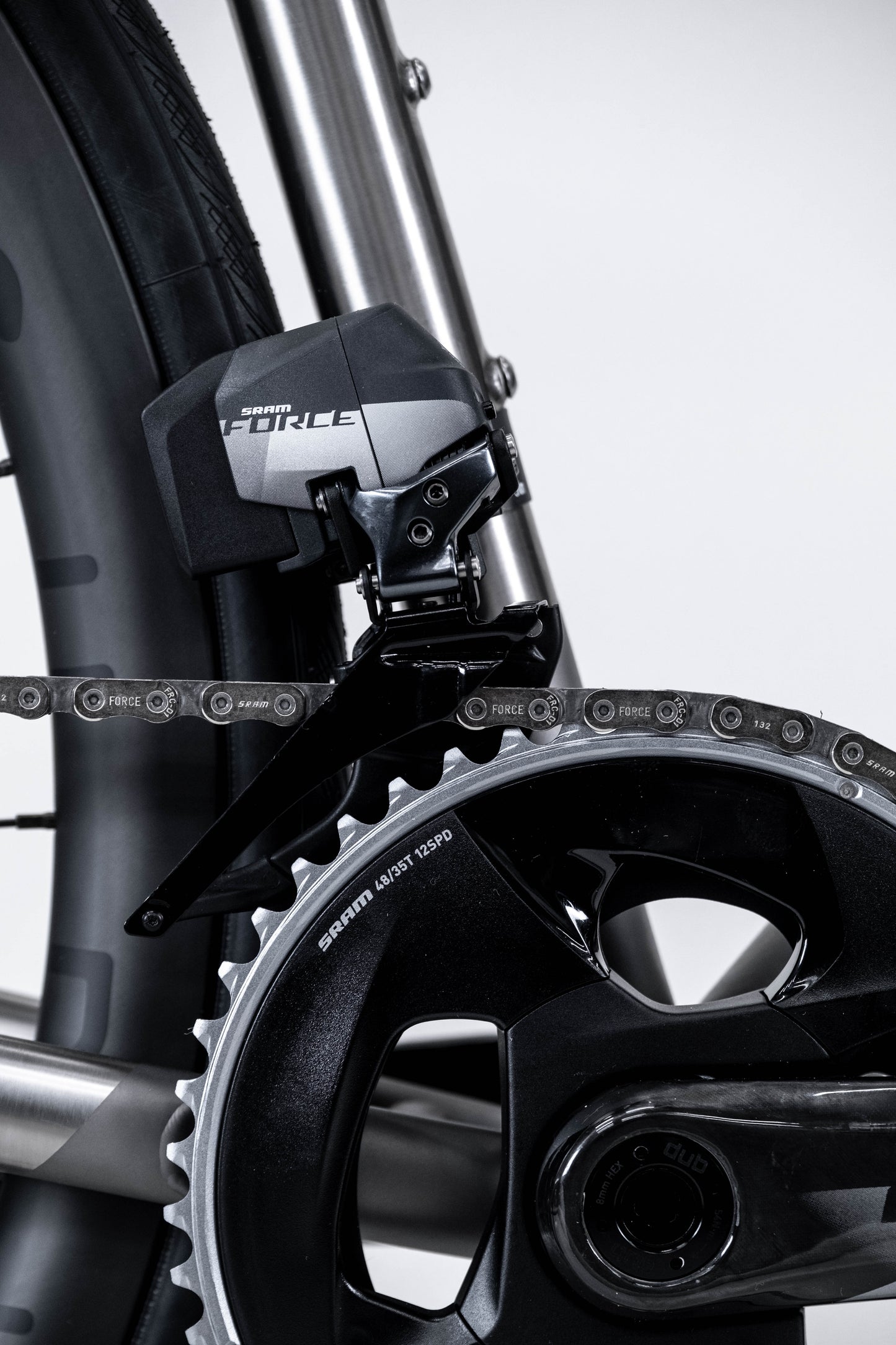

SRAM Force AXS eTap 12 sp

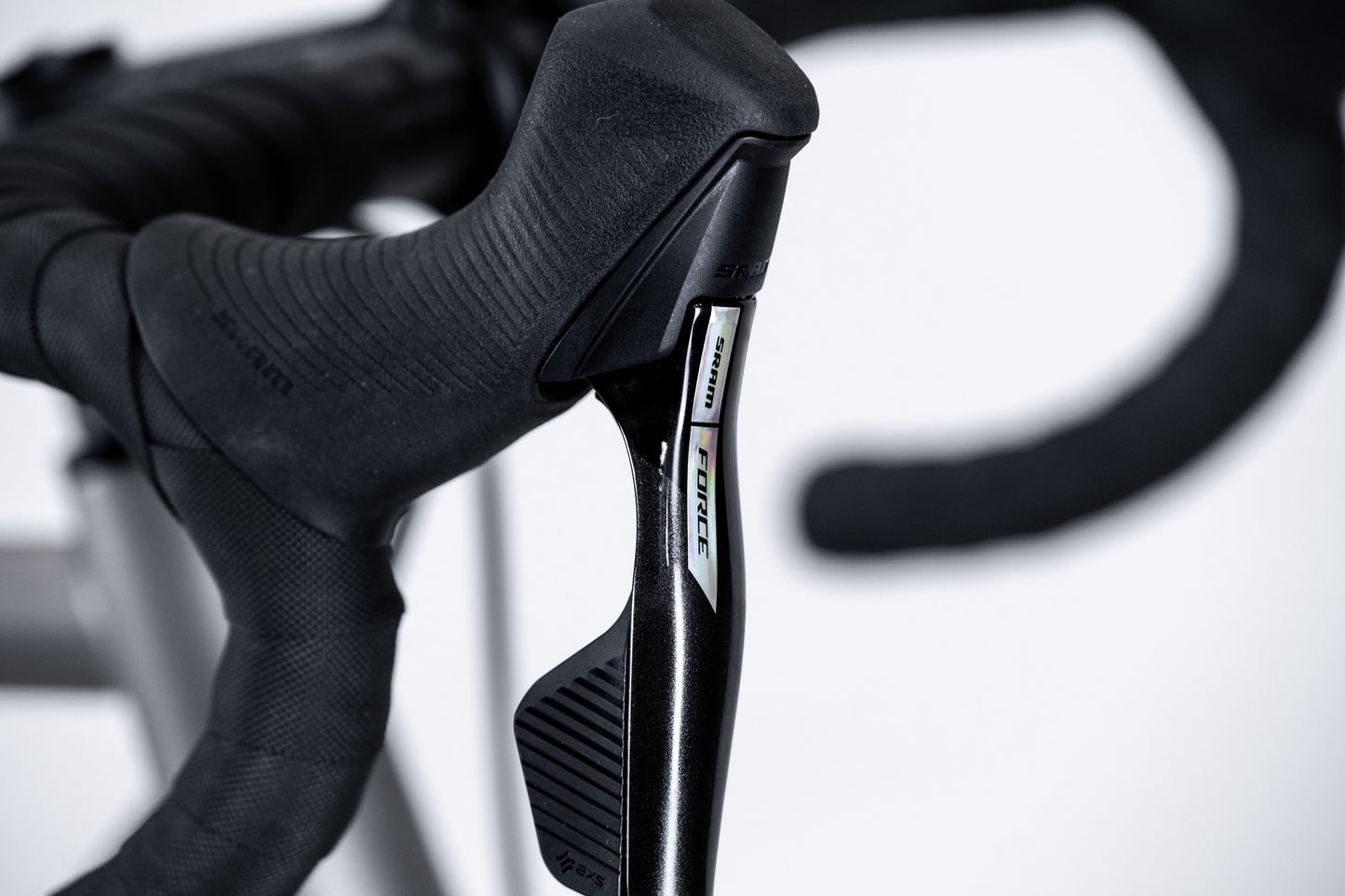

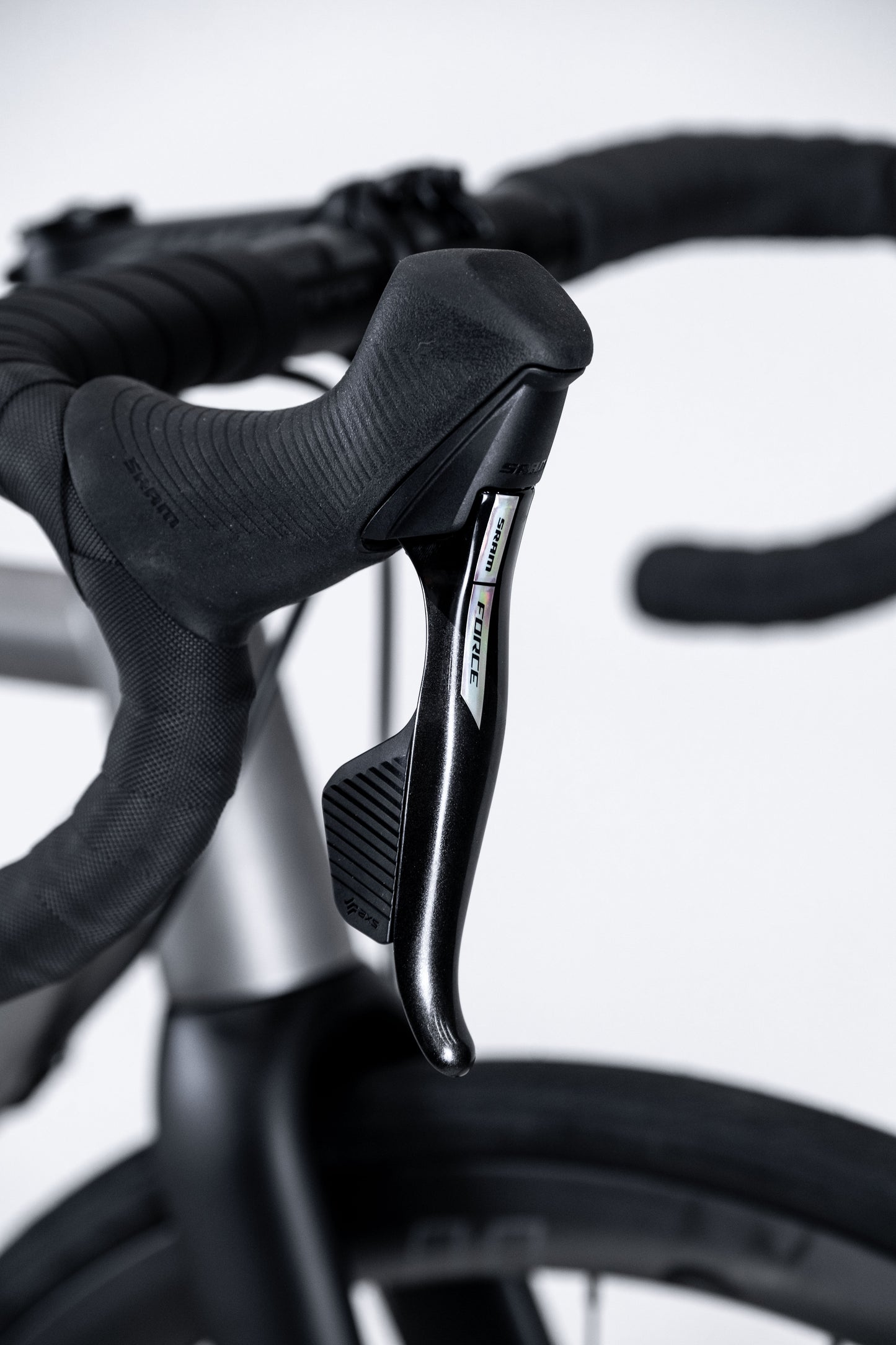

Shifter/Levers - Force AXS 2x12 sp - LHR / RHF
Brakes - Force AXS Flat Mount Disc // CLX R CL Rotors 160 mm

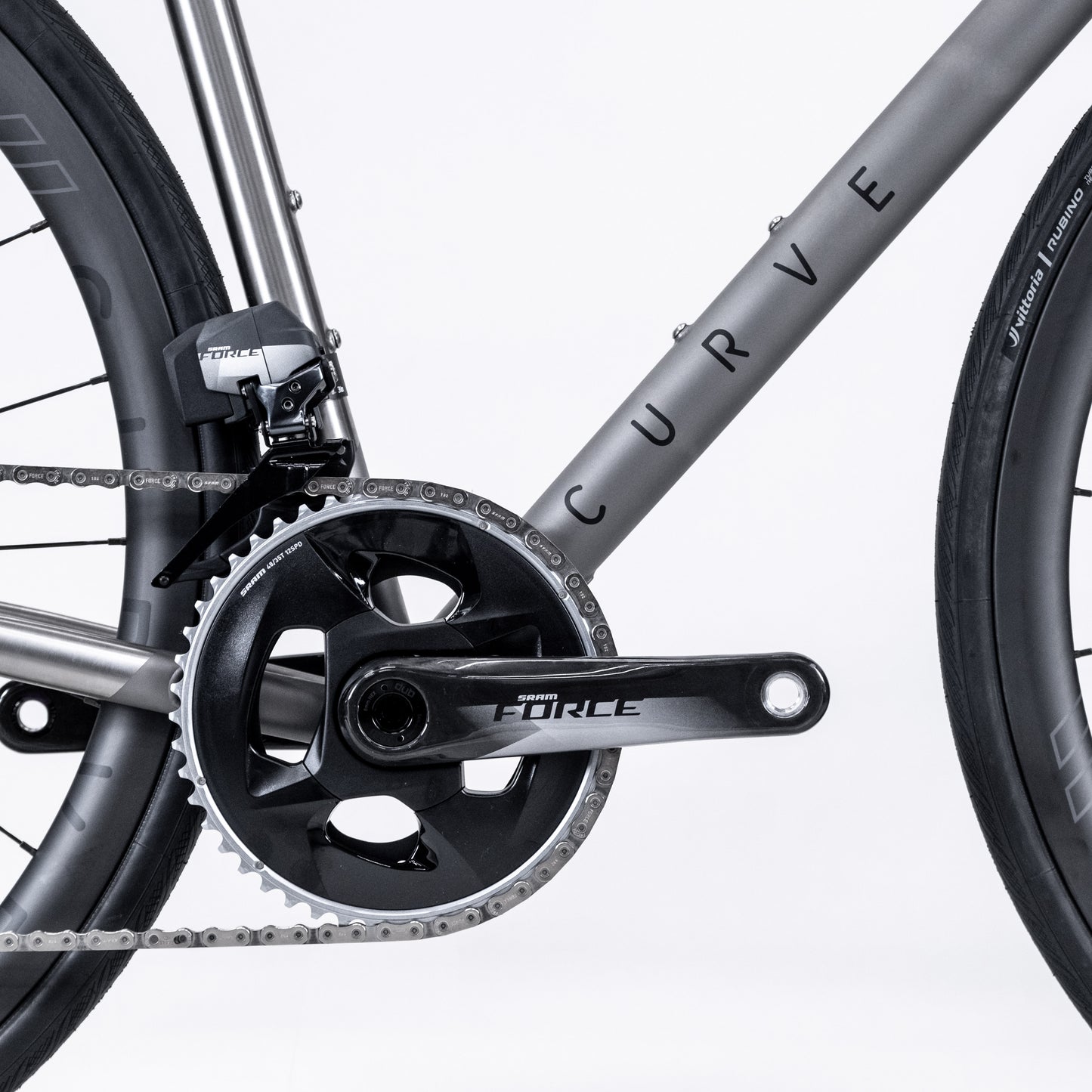

Crank - Force DUB - 48/35t | 48-50 cm: 165 mm | 52-55 cm: 170 mm | 56-61 cm: 175 mm
Bottom Bracket - Curve T47 DUB Ext.

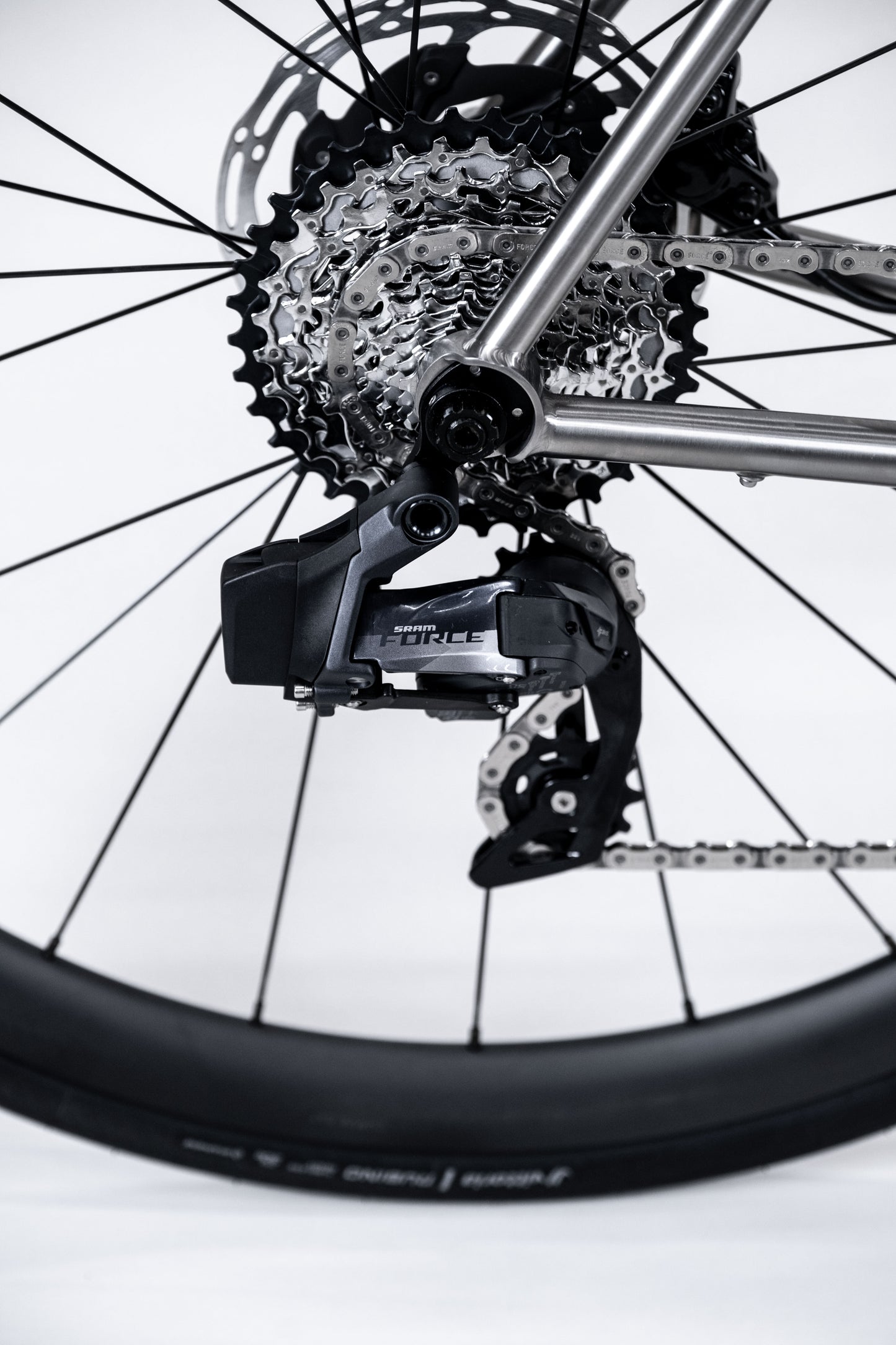

Derailleur F & R - Force AXS 2x12 sp (RD Max 36t)
Cassette - XG 1270 10-36t 12 sp
Chain - Force 12 sp
-
SRAM Rival AXS 12 sp
Shifter/Levers - Rival AXS 2x12 sp - LHR / RHF
Brakes - Rival Flat Mount Disc // CL Rotors 160 mm
Crank - Rival D1 DUB - 48/35t | 48-50 cm: 165 mm | 52-55 cm: 170 mm | 56-61 cm: 175 mm
Bottom Bracket - Curve T47 DUB Ext.
Derailleur F & R - Rival AXS D1 12 sp (RD Max 36t)
Cassette - XG 1250 D1 10-36t 12 sp
Chain - Rival 12 sp
Wheels
Curve G4T 35 mm or 45 mm - 700C
Carbon All-Road Wheels:
- 21 mm internal, 28 mm external, 35 / 45 mm deep

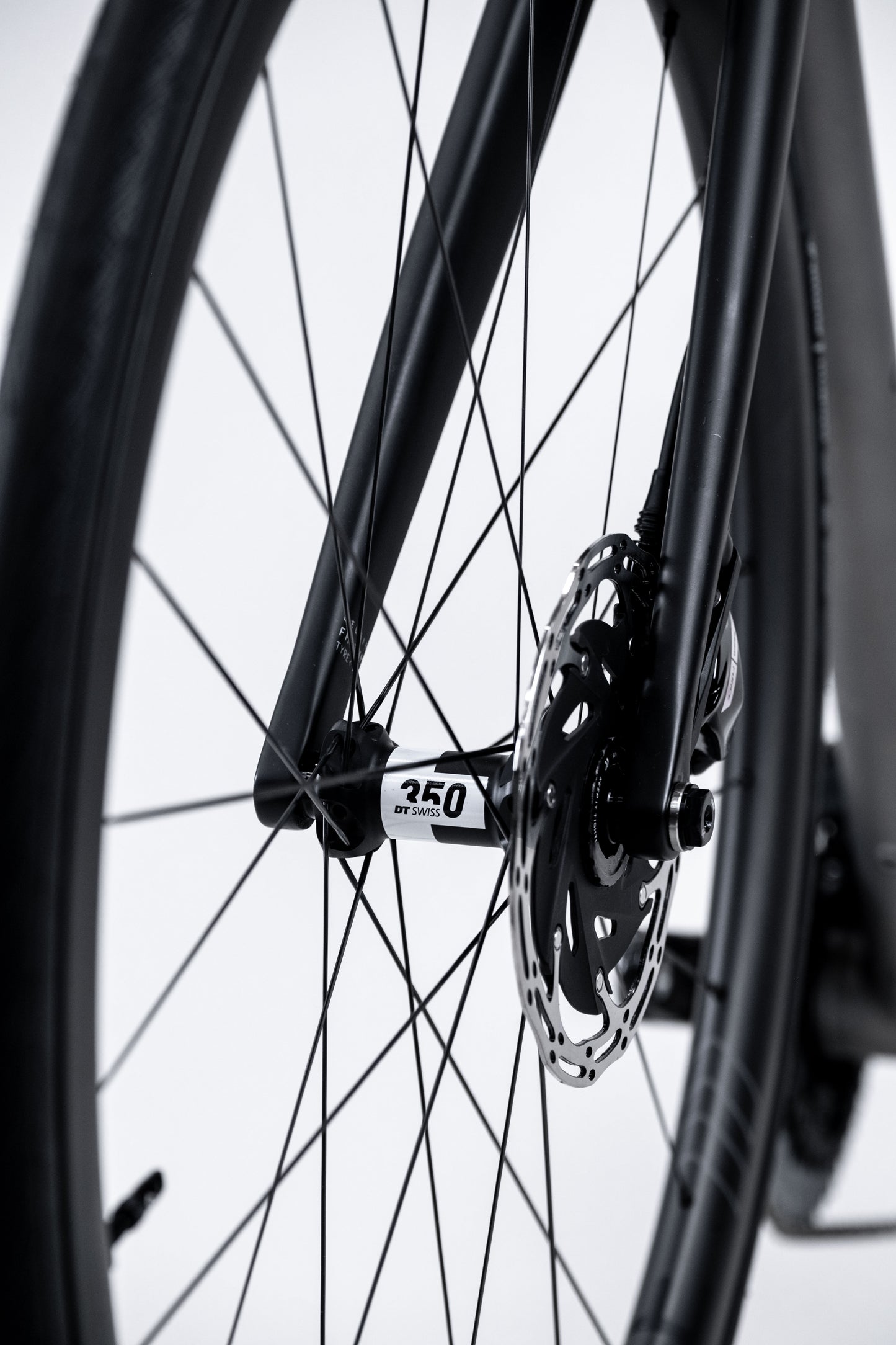

- Hub: DT Swiss 350 24H Centre Lock
- Spokes & Nipples: Sapim CX Ray & Brass
- Axle spacing: 12 x 100 mm front, 12x 142 mm rear
Finishing Kit

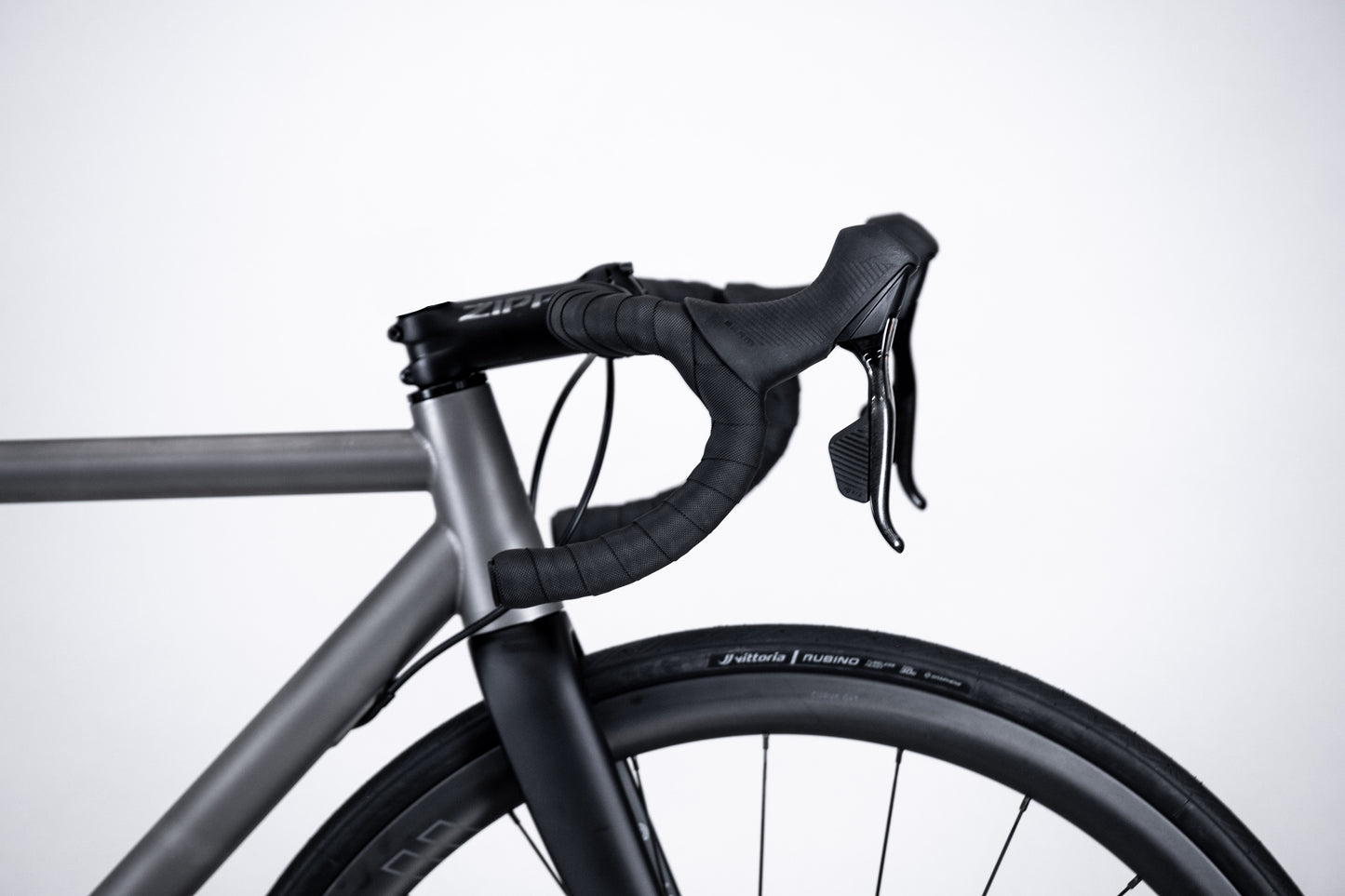

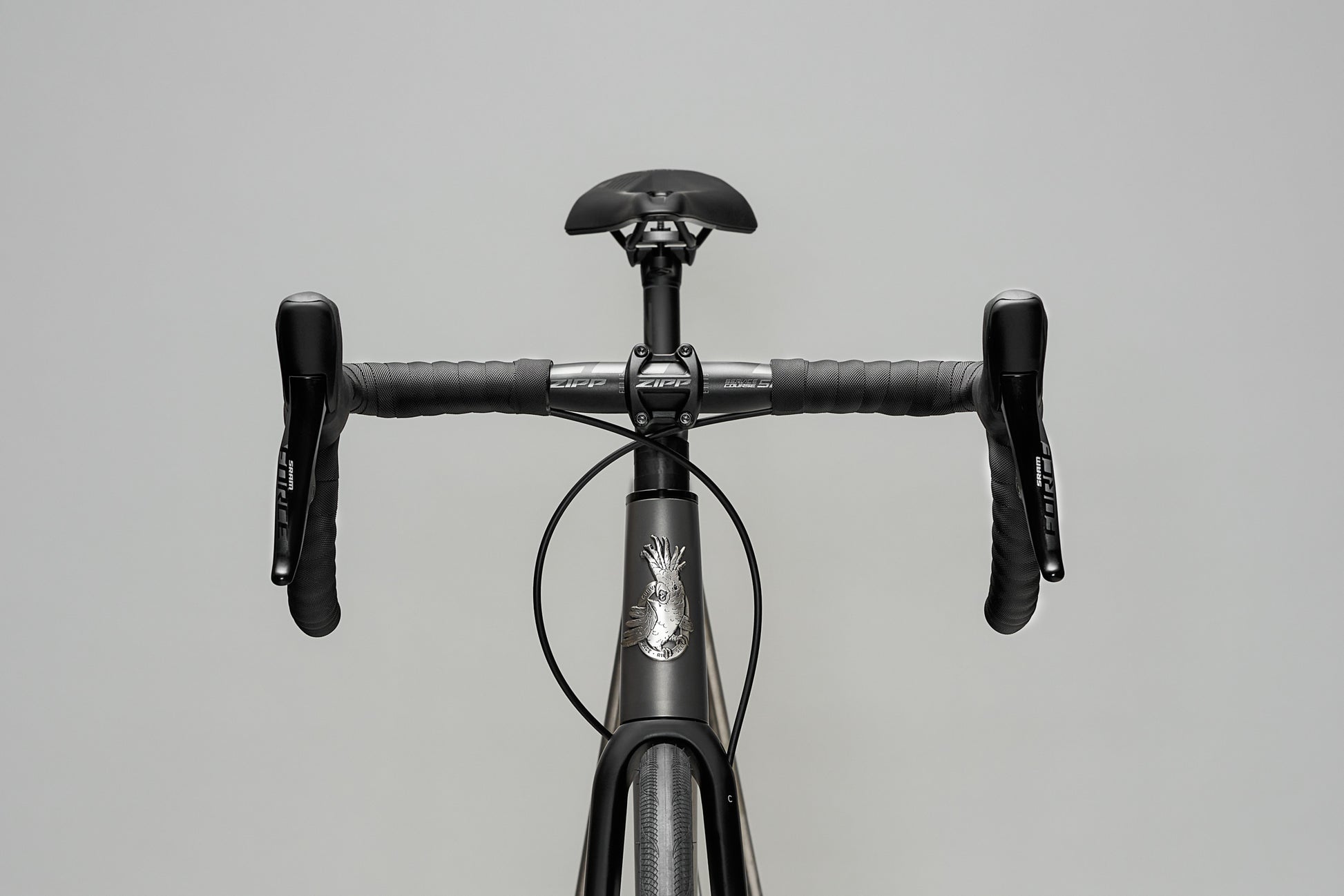

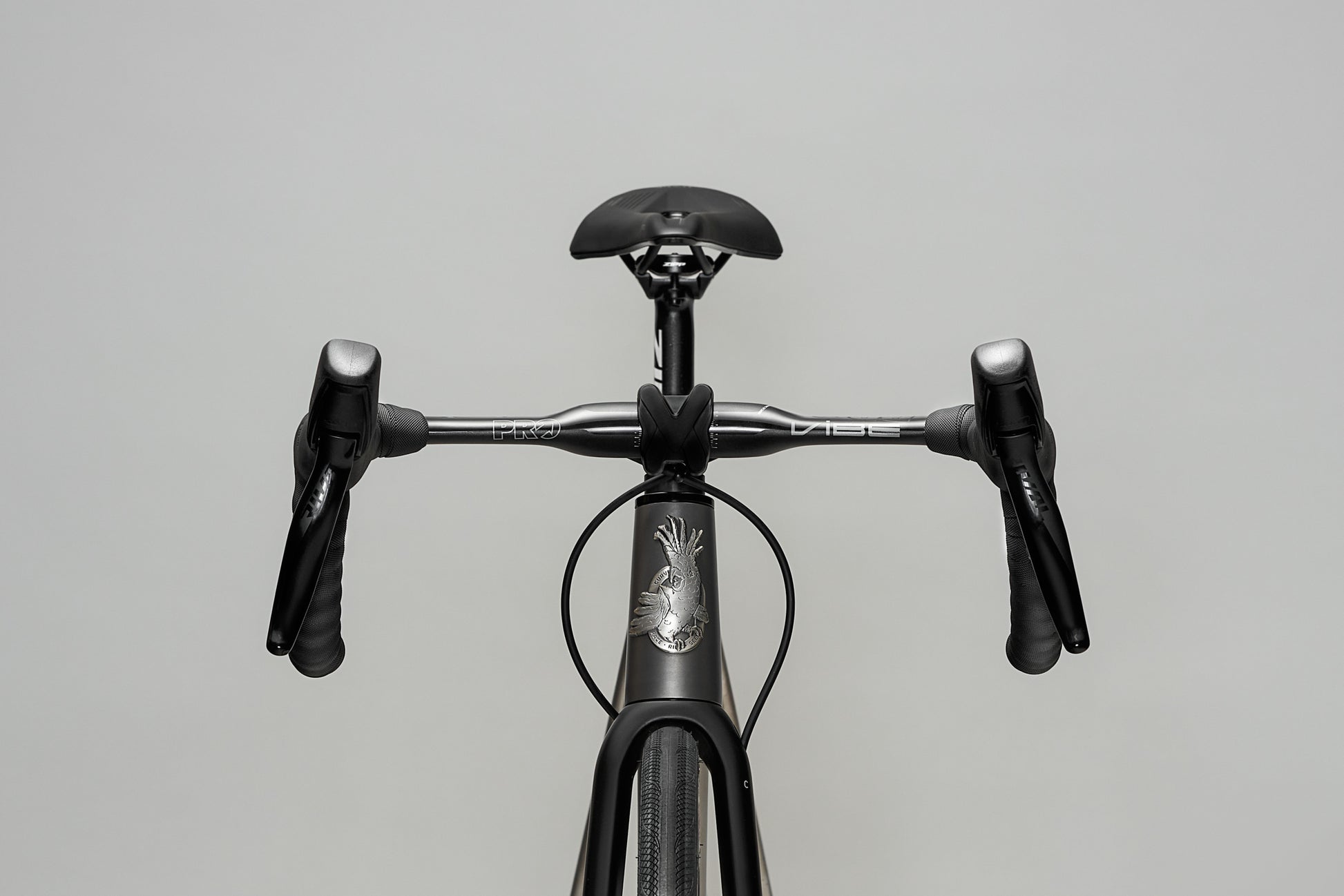

Bars - Zipp SC SL Beyond Black

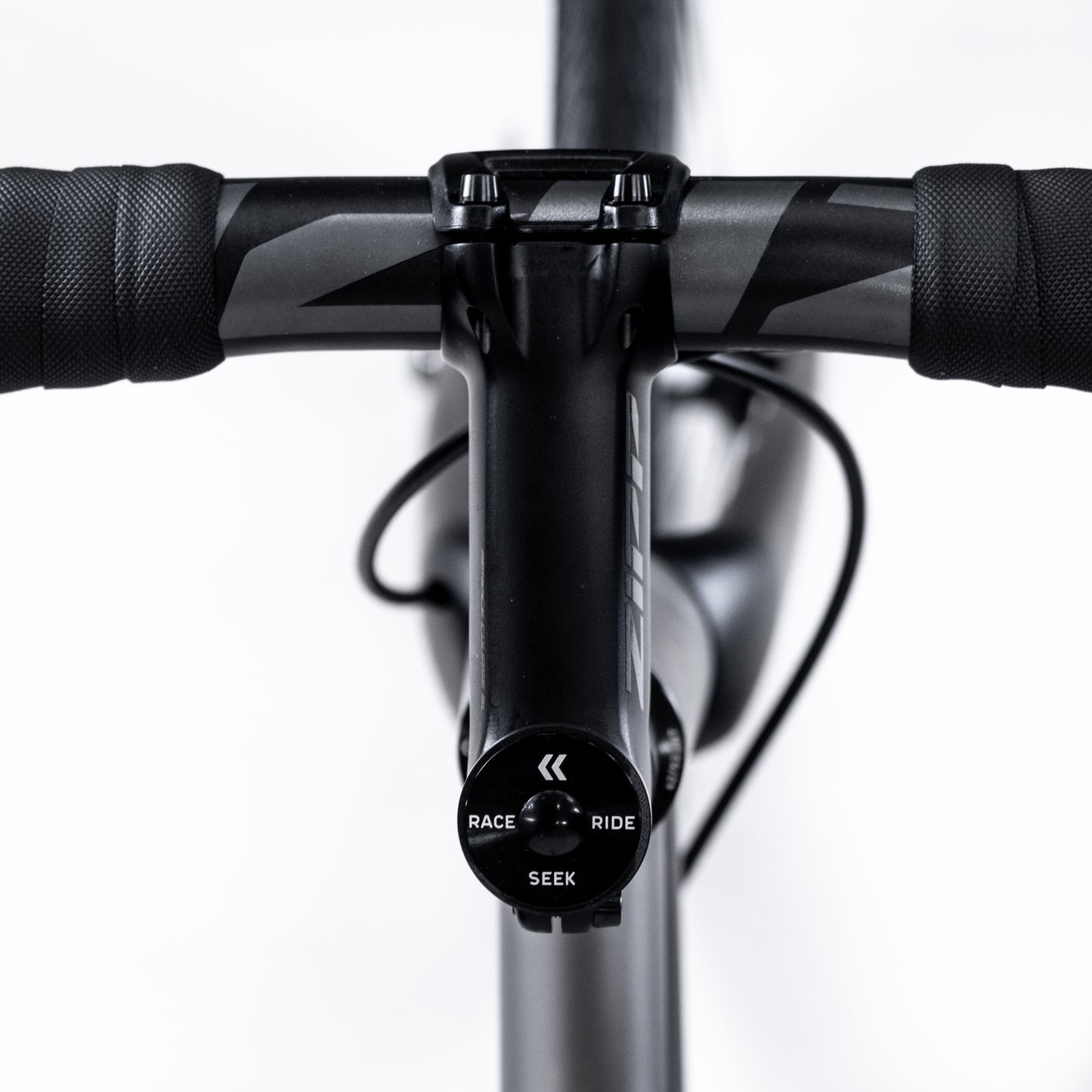

Stem - Zipp SC SL | SC with Rival builds
Seatpost - Zipp SC SL 0° 27.2 mm | SC with Rival
Saddle - Fi'zi:k Vento Argo
Tyres - Rubino Pro TLR 700 x 30c
Bar Tape - Curve black anti-shock
Please Note: Spec subject to change according to availability
